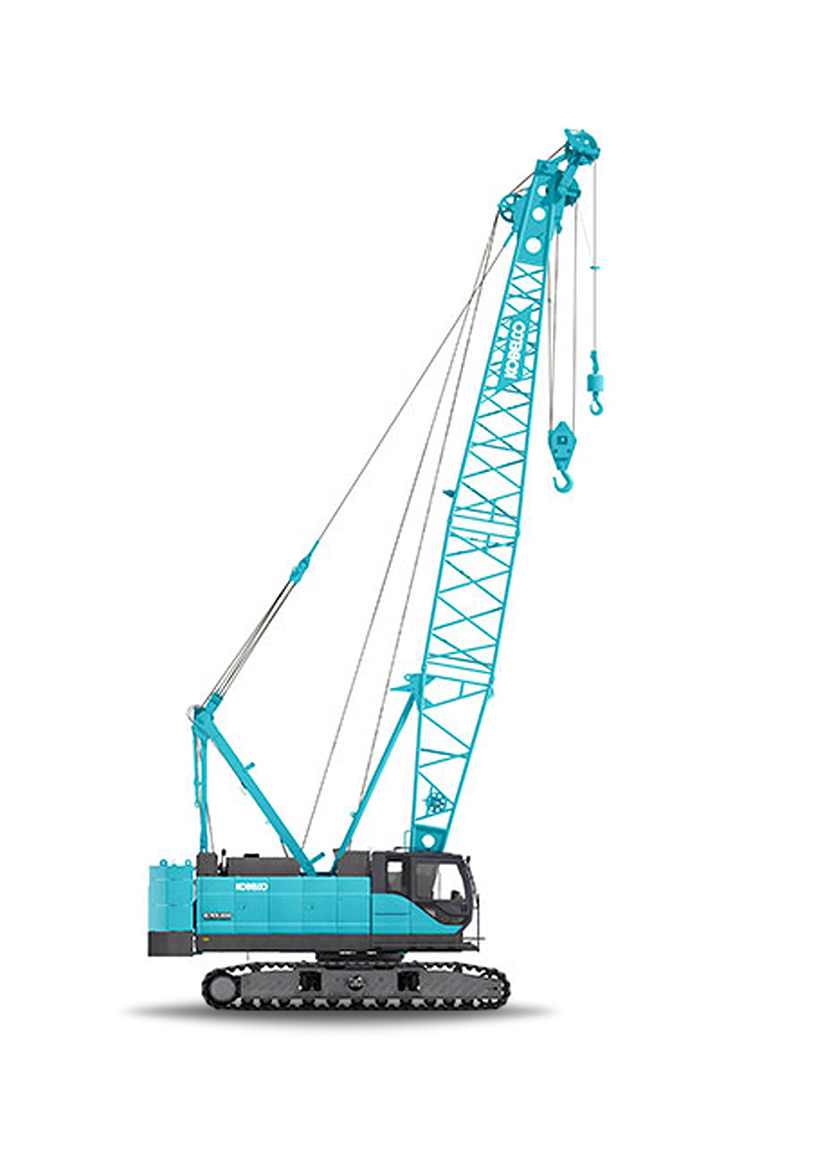

SL6000S
SL6000S
| Engine | Model | Max Boom Length |
|---|---|---|
| 320 kW/2,000 min-1 {rpm} | HINO E13C-WY | 24 ~ 84 m |
| Engine | 320 kW/2,000 min-1 {rpm} |
|---|---|
| Model | HINO E13C-WY |
| Max Boom Length | 24 ~ 84 m |
- This series can be used for industry:
- Crane
- Download Brochure
- SL6000S.PDF
Wherever the future is under construction, from large-scale plant and energy-related projects to infrastructure maintenance, you’ll find Kobelco’s super large size SL6000S and SL4500S crawler cranes in the thick of the action. Ergonomic for maximum comfort. Eco-engineered to be friendlier to our Earth. Kobelco Cranes embody new values.
The interface gathers all the important data and operational items into one compact space. The switch and gauge layout takes both operator field of view and hand movement into consideration. Easy-to-understand pictograms, a clear M/L monitor, and touch-panel operation add up to major improvements in operating efficiency.
The large-capacity, super-fine filters is made of a high-performance filter medium consisting of glass fibre reinforced with steel wires. The replacement cycle is four times longer than that of conventional filters, which reduce lifelong operation costs.
SL6000S
Lift Enhancer
| STD | HL | SHL | |
| HL Mast | - | 30 m | 30 m |
| Additional Weight | - | - | ~250 t |
Heavy Duty Crane Boom
| Max.Lifting Capacity | 450 t | 370 t | 550 t |
|---|---|---|---|
| Max.Lifting Capacity | 6.7 m | 8.3 m | 8.3 m |
| Length | 24 ~ 84 m | 36 ~ 84 m | 36 ~ 84 m |
Luffing Boom
| Max.Lifting Capacity | 300 t | 300 t | 300 t |
|---|---|---|---|
| Max.Lifting Capacity | 9.3 m | 9.3 m | 300 t |
| Length | 30 ~ 84 m | 36 ~ 84 m | 36 ~ 84 m |
Long Boom
| Length | 90 ~ 108 m | 90 ~ 108 m | 90 ~ 126 m |
|---|---|---|---|
| Max. Lifting Capacity | 98 t | 98 t | 98 t |
| Max. Lifting Capacity | 18 t | 20 m | 30 m |
Heavy Fixed Jib
| *1 | *2 | |||
| Max.Lifting Capacity | 105 t | 120 t | 120 t | 105 t |
| Max.Lifting Capacity | 20.0 m | 9.3 m | 20 m | 30 m |
| Max. Combination (Boom) | 78 m | 78 m | 78 m | 102 m |
| Max. Combination (Jib) | 18 m | 18 m | 18 m | 18 m |
Luffing Jib
| Max. Lifting Capacity | 195.1 t | 200 t | 200 t |
|---|---|---|---|
| Max. Lifting Capacity | 14 m | 14.4 m | 14.4 m |
| Max.Combination (Boom) | 60 m | 66 m | 84 m |
| Max.Combination (Jib) | 72 m | 72 m | 84 m |
| Luffing Angle | 66o ~ 86o | 66o ~ 86o | 66o ~ 86o |
Power Plant
| Model | Hino E13C-WY | |
|---|---|---|
| Engine Output | 320 kW/2,000 min-1 {rpm} | |
| Fuel Tank Capacity | 600 liters | |
Hoist Winch (H1, H2)
| Max. Line Speed | 110 m/min (1st layer) | |
|---|---|---|
| Rated Line Full (Single Line) | 137 kN {14.0 tf} | |
| Wire Rope Diameter | 28 mm | |
| Wire Rope Length | 830 m | |
Working Speed
| Swing | 0.9 min-1 {rpm} | |
|---|---|---|
| Travel | 1.0/0.6 km/h | |
Hydraulic System
| Pumps | 7 Variable displacement | |
|---|---|---|
| Max. Pressure | 32.0 MPa {326 kgf/cm2 } | |
| Hydraulic Tank Capacity | 710 liters | |
Weight
| Working Weight *3 | Approx. 444 t | |
|---|---|---|
| Ground Pressure *3 | 142 kPa {1.5 kgf/cm2 } | |
| Counterweight (Upper) | Upper : 200 metric tons | |
| Counterweight (Upper) | Lower : 50 metric tons | |
*1 Heavy Fixed Jib Type B2
*2 Heavy Fixed Jib Type C
*3 Including base machine, counterweight =200 metric ton, carbody weights =50 metric ton, 24 m boom with heavy boom tip and 450 metric ton hook block. Not include quick connection device and upper transfilter.
